Overview
Developed by Argedit, this 8-16 port outdoor fiber optic distribution box is designed to meet mid-scale termination and distribution requirements in FTTH projects. With its robust housing, scalable port capacity, and user-friendly internal layout, it meets all expectations of both service providers and field technicians.
Suitable for both Indoor and Outdoor applications

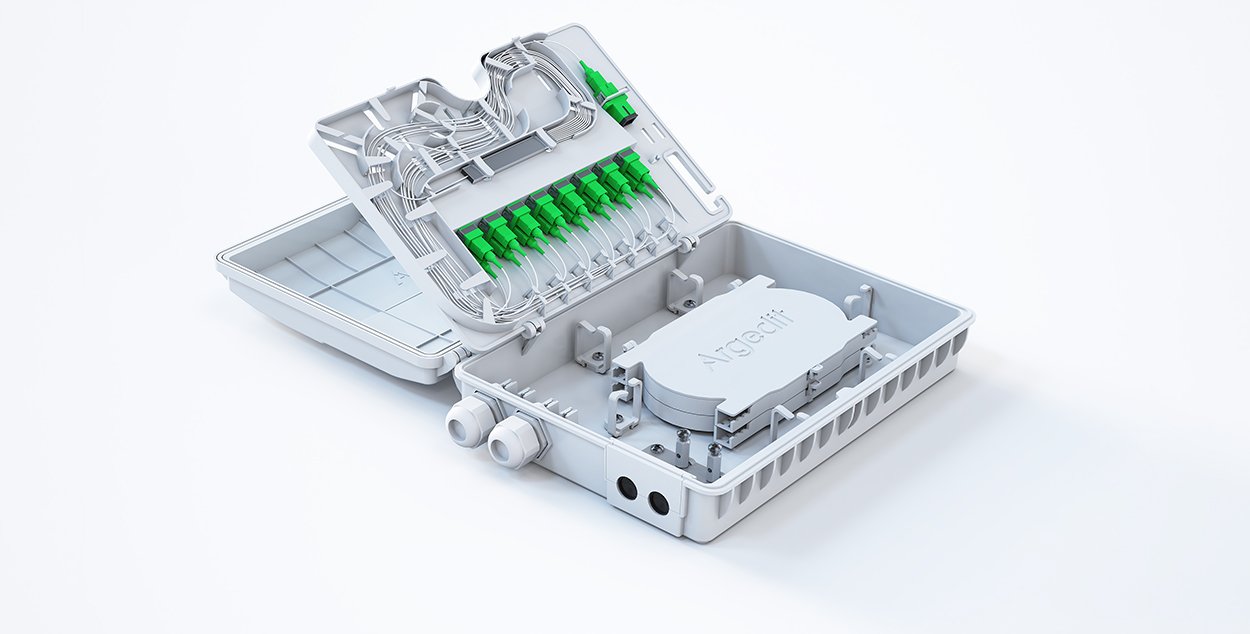

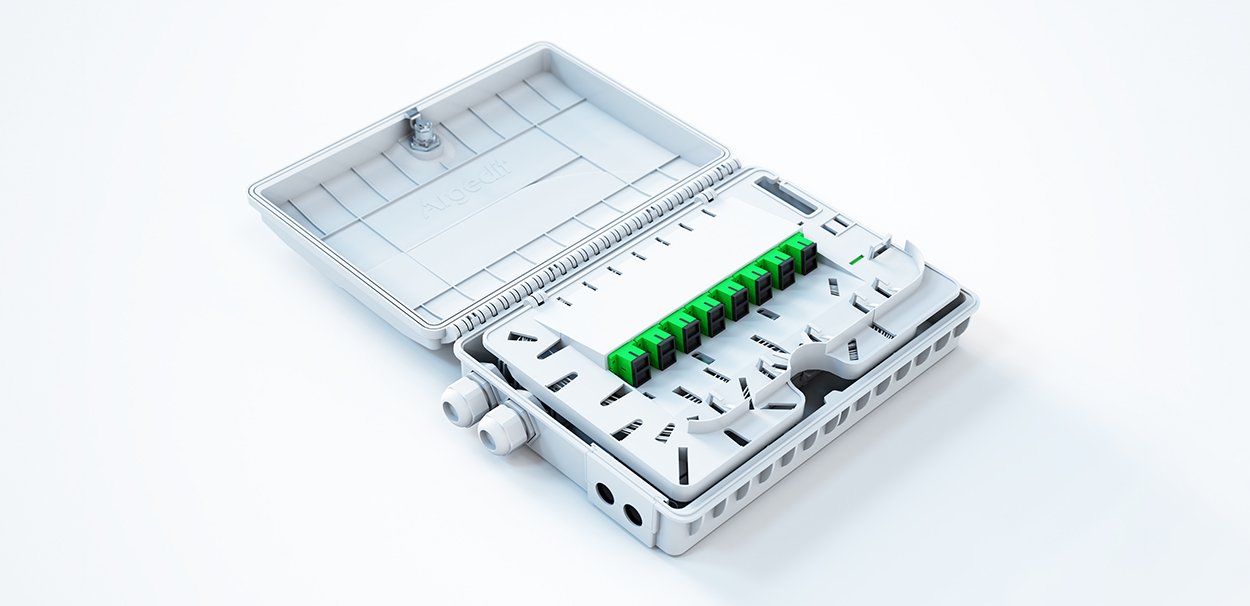

Featuring two splice trays and optimized routing channels, it ensures organized and secure management of incoming and outgoing cables. Connections are safeguarded for longevity by maintaining critical fiber bend radius standards.
Application Areas
- FTTH outdoor distribution and termination points
- Outdoor subscriber interface units
- Cross-connect points and cabinet-integrated installations
- Mid-scale fiber deployment projects for ISPs

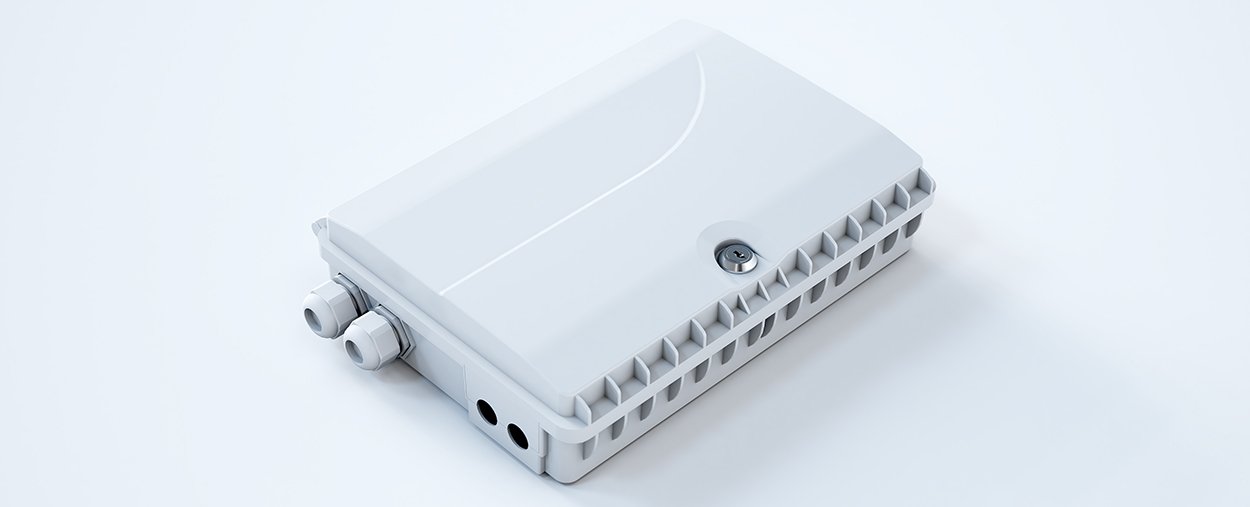

The IP65-rated enclosure, made from a specialized UV-resistant and high-impact plastic blend, provides durable protection against harsh environmental conditions. The unit comes pre-configured for 8 ports and can be expanded up to 16 ports upon request.
Product Details
| Malzeme | PC-ABS |
| Renk | RAL7035 (Gri) |
| Alev Dayanımı | UL94 V0 |
| Koruma Sınıfı | IP65 |
| Giriş Portları | 1 Port |
| Çıkış Portları | 16 Porta kadar |
| Genişlik (W) | 215 mm |
| Yükseklik (H) | 284 mm |
| Derinlik (D) | 72 mm |
| Montaj | Vida ve Dübel Seti |
| Giriş | 2 adet Ø15mm (Window-Cutting) |
| Çıkış | 2 Adet PG16 |
| Füzyon Ek Kasedi | 2 Adet (2x12 Port) |
| Material | PC-ABS (Polycarbonate-ABS) |
| Color | RAL7035 (Gri) |
| Fire Retardant | UL94 V-0 Rated |
| Protection Rating | IP65 |
| Input Ports | 1 Port |
| Output Ports | Up to 16 Ports |

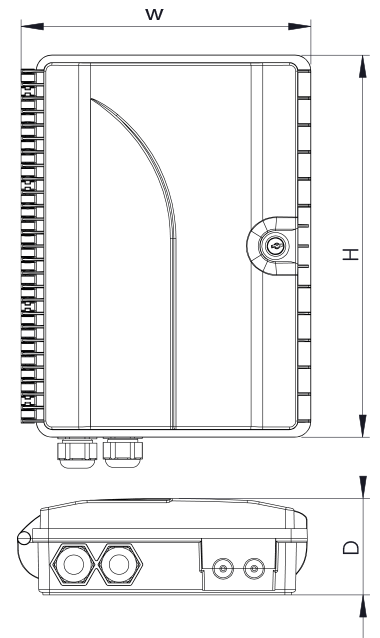

| Width (W) | 215 mm |
| Height (H) | 284 mm |
| Depth (D) | 72 mm |
| Mounting | Screw and Wall Plug Set |
| Inlet | 2x Ø15mm (Window-Cutting / Mid-span Access) |
| Outlet | 2x PG16 Glands |
| Splice Tray | 2 Units (2x12 Ports) |
Technical Documents
AP16 Technical Datasheet
Click here to download the file.
AP16 Installation & User Manual
Click here to download the file.
