Overview

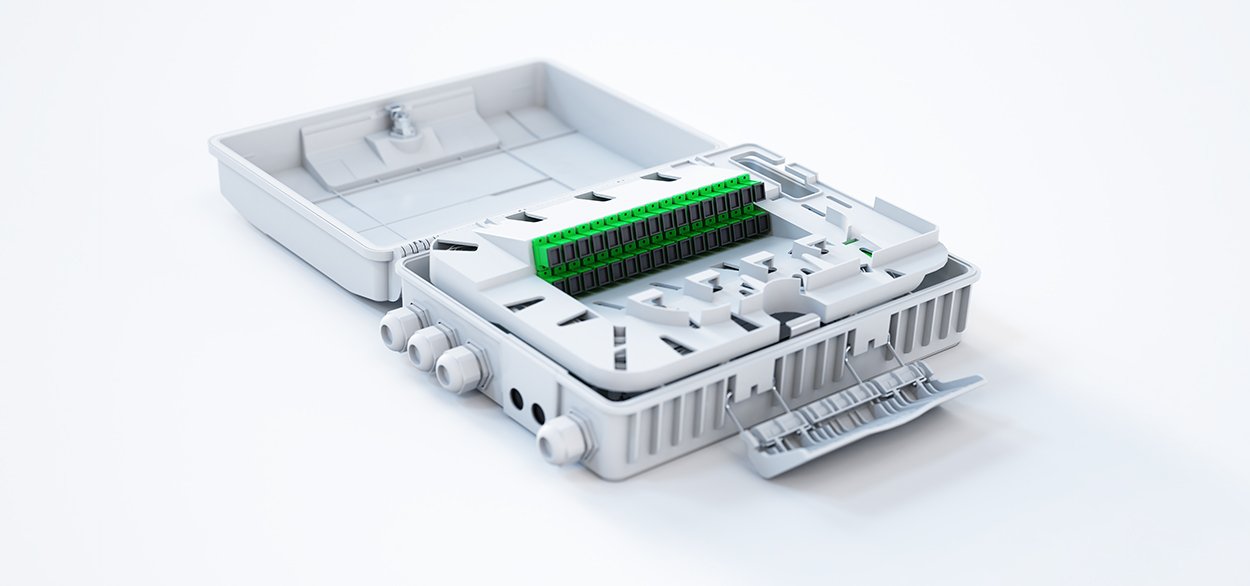

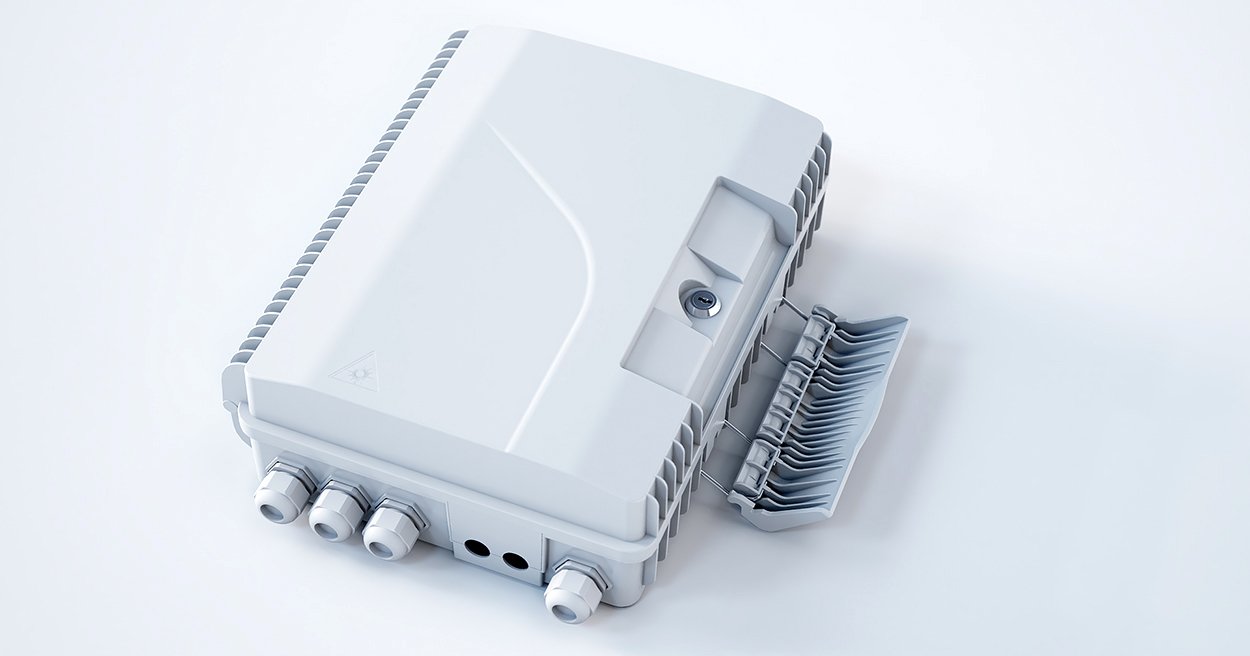

Argedit’s 32-port outdoor distribution enclosure offers high-level protection, functionality, and ease of installation at field distribution points for FTTH/FTTx projects. Its weather-resistant construction ensures durable and reliable fiber terminations in harsh outdoor environments. The spacious interior and functional design streamline installation and maintenance workflows for technical teams.
Optimized field solution for FTTH infrastructures
Designed by Argedit, this 32-port outdoor distribution box stands out with its plug-and-play feature, enabling rapid and error-free FTTH deployments. The unit is delivered with a pre-installed 1×32 connectorized splitter, allowing for immediate activation without field delays.
Application Areas
- FTTH and FTTx field distribution nodes
- Outdoor telecom infrastructure enclosures
- Centralized termination points at building entries
- Outdoor fiber management in industrial facilities

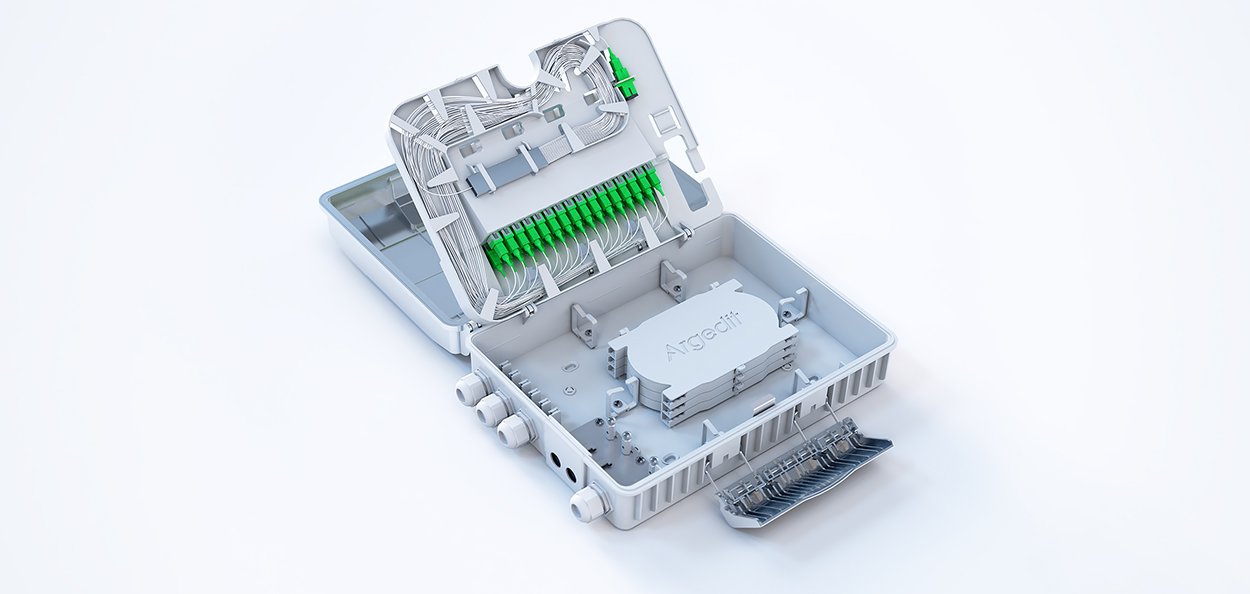

Connection ports, splitter outputs, and cable routing paths are organized for high visibility and easy access. Integrated guidance channels ensure proper fiber orientation, minimizing bending stress and preventing signal loss.
Product Details
| Malzeme | PC-ABS |
| Renk | RAL7035 (Gri) |
| Alev Dayanımı | UL94 V0 |
| Koruma Sınıfı | IP65 |
| Giriş Portları | 1 Port |
| Çıkış Portları | 32 Porta kadar |
| Genişlik (W) | 260 mm |
| Yükseklik (H) | 330 mm |
| Derinlik (D) | 109 mm |
| Montaj | Vida ve Dübel Seti |
| Giriş | 2 adet Ø15mm (Window-Cutting) 1 ADET PG16 |
| Çıkış | 3 Adet PG16 |
| Füzyon Ek Kasedi | 3 Adet (3x12 Port) |
| Material | PC-ABS (Polycarbonate-ABS) |
| Color | RAL7035 (Light Grey) |
| Fire Retardant | UL94 V-0 Rated |
| Protection Rating | IP65 Weatherproof |
| Input Ports | 1 Port |
| Output Ports | Up to 32 Ports |
| Width (W) | 260 mm |
| Height (H) | 330 mm |
| Depth (D) | 109 mm |
| Mounting | Screw and Wall Plug Set |
| Inlet | 2x Ø15mm (Mid-span Access) & 1x PG16 Gland 1 ADET PG16 |
| Outlet | 3x PG16 Glands |
| Fusion Splice Tray | 3 Units (3x12 Ports) |
Technical Documents
AP32 Technical Datasheet
Click here to download the file.
AP32 Installation & Manual Guide
Click here to download the file.
