Overview
Developed by Argedit, the 24-Port Outdoor Fiber Optic Distribution Box is engineered to manage outdoor connections securely and efficiently within FTTH and FTTx infrastructures. Its UV-resistant housing, IP65 protection rating, and gasket-sealed inlets provide full protection against dust, water, and environmental factors.
Optimized field solution for FTTH networks

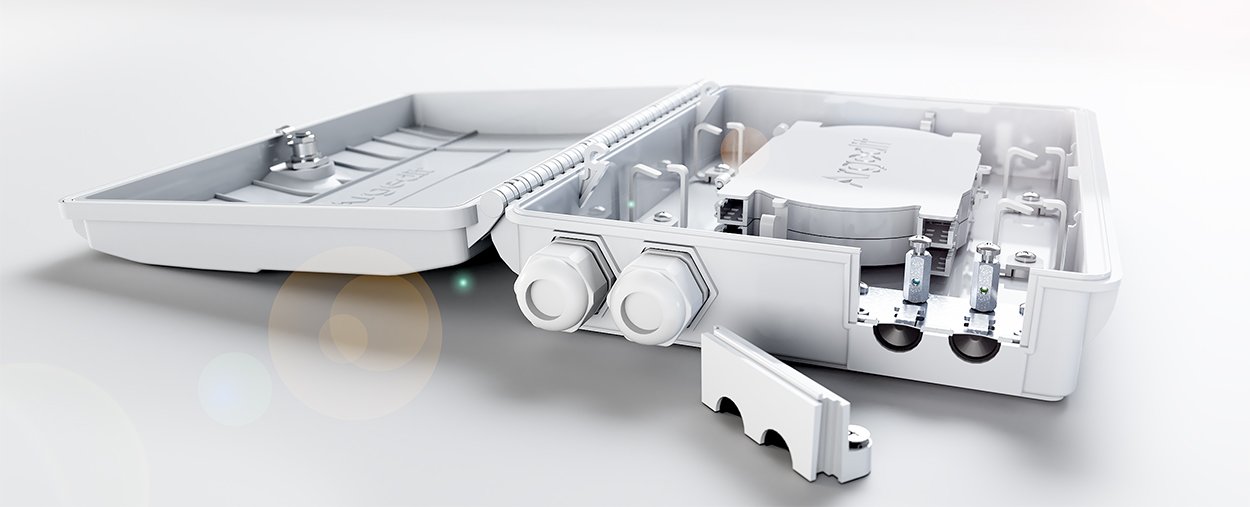

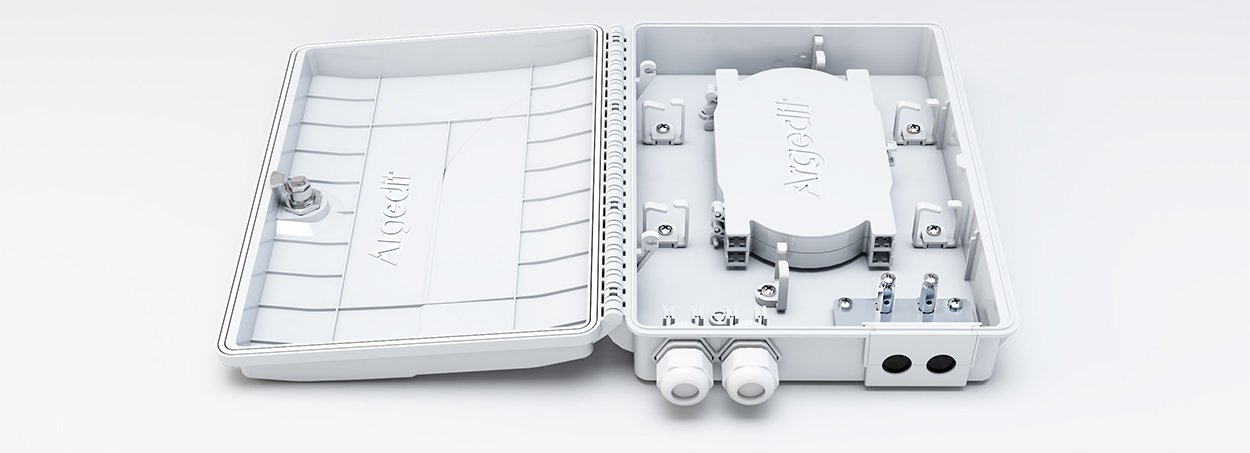

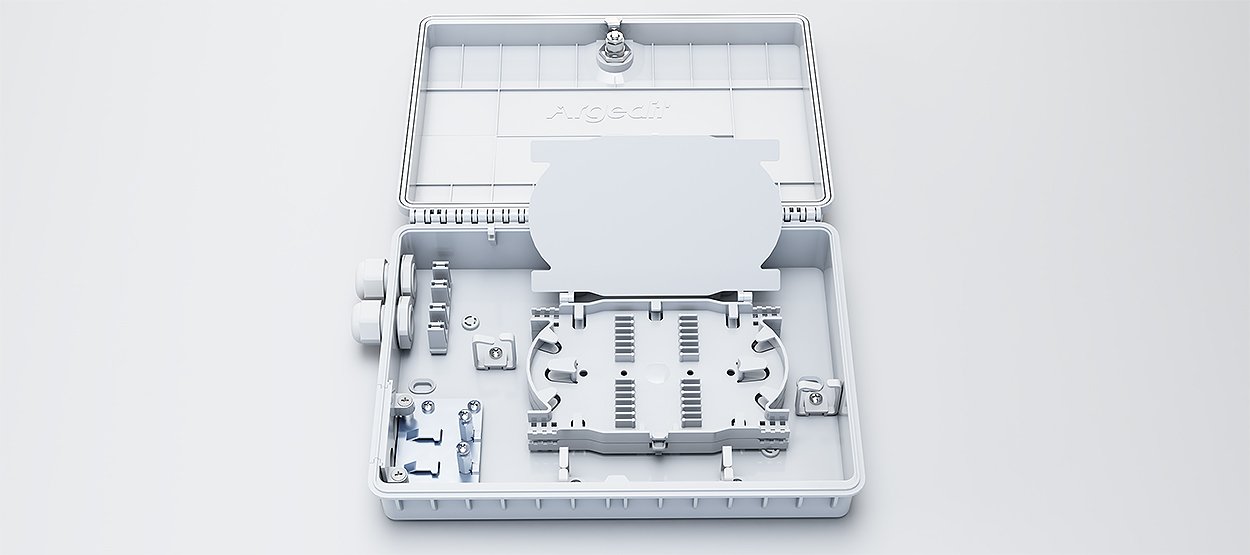

Integrated routing channels and a modular splice tray enable rapid field installation and organized cable management. With 24 ports compatible with SC or LC connectors, it offers flexible deployment for both residential and corporate projects.
Application Areas
- FTTH field distribution nodes
- Telecom infrastructure projects
- Outdoor termination box applications
- Campus and private estate fiber distribution
Precision routing guides for incoming and outgoing fibers reduce bending stress and prevent signal degradation.
Product Details
| Malzeme | PC-ABS |
| Renk | RAL7035 (Gri) |
| Alev Dayanımı | UL94 V0 |
| Koruma Sınıfı | IP65 |
| Genişlik (W) | 215 mm |
| Yükseklik (H) | 284 mm |
| Derinlik (D) | 72 mm |
| Montaj | Vida ve Dübel Seti |
| Giriş | 2 adet Ø15mm (Window-Cutting) |
| Çıkış | 2 Adet PG16 |
| Füzyon Ek Kasedi | 2 Adet (2x12 Port) |
| Material | PC-ABS (Polycarbonate-ABS) |
| Color | RAL7035 (Light Grey) |
| Fire Retardant | UL94 V-0 Rated |
| Protection Rating | IP65 Weatherproof |
| Width (W) | 215 mm |
| Height (H) | 284 mm |
| Depth (D) | 72 mm |
| Mounting | Screw and Wall Plug Set |
| Inlet | 2x Ø15mm (Window-Cutting / Mid-span Access) |
| Outlet | 2x PG16 Glands |
| Fusion Splice Tray | 2 Units (2x12 Ports) |
Technical Documents
DF24 Technical Datasheet
Click here to download the file.
DF24 Installation & User Guide
Click here to download the file.
