Overview

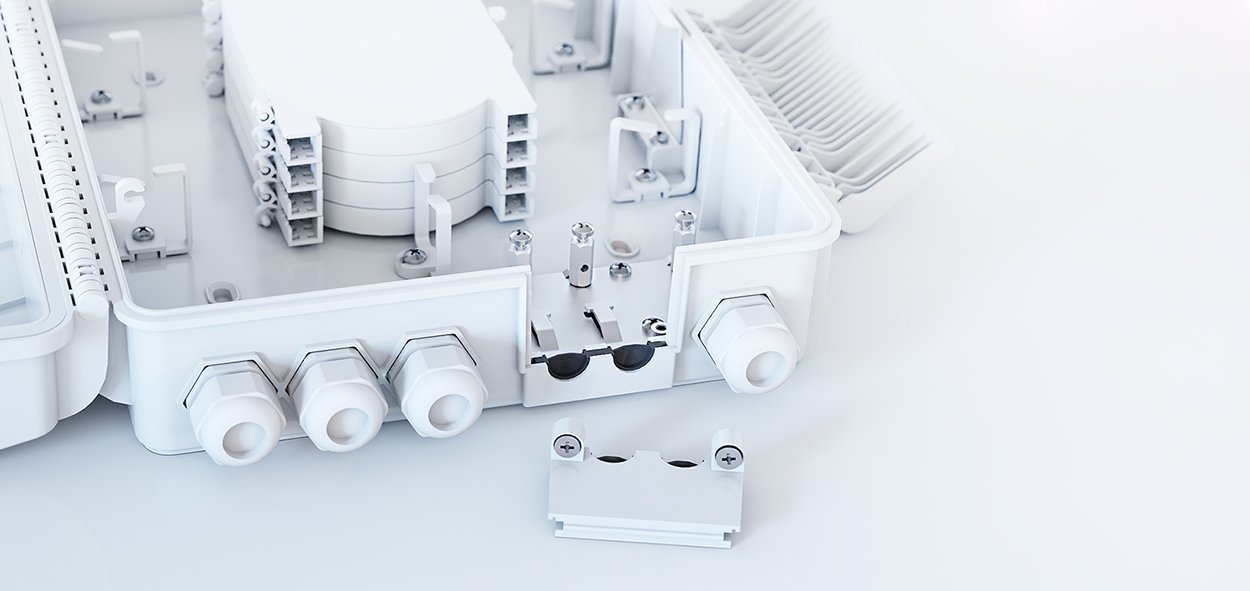

Developed by Argedit, the 48-Port Outdoor Fiber Optic Distribution Box is designed for the secure and organized management of outdoor connections in FTTH and FTTx infrastructures. Its UV-resistant body, IP65 protection rating, and sealed inlets provide full protection against dust, water, and external environmental factors.
Optimized field solution for FTTH infrastructures

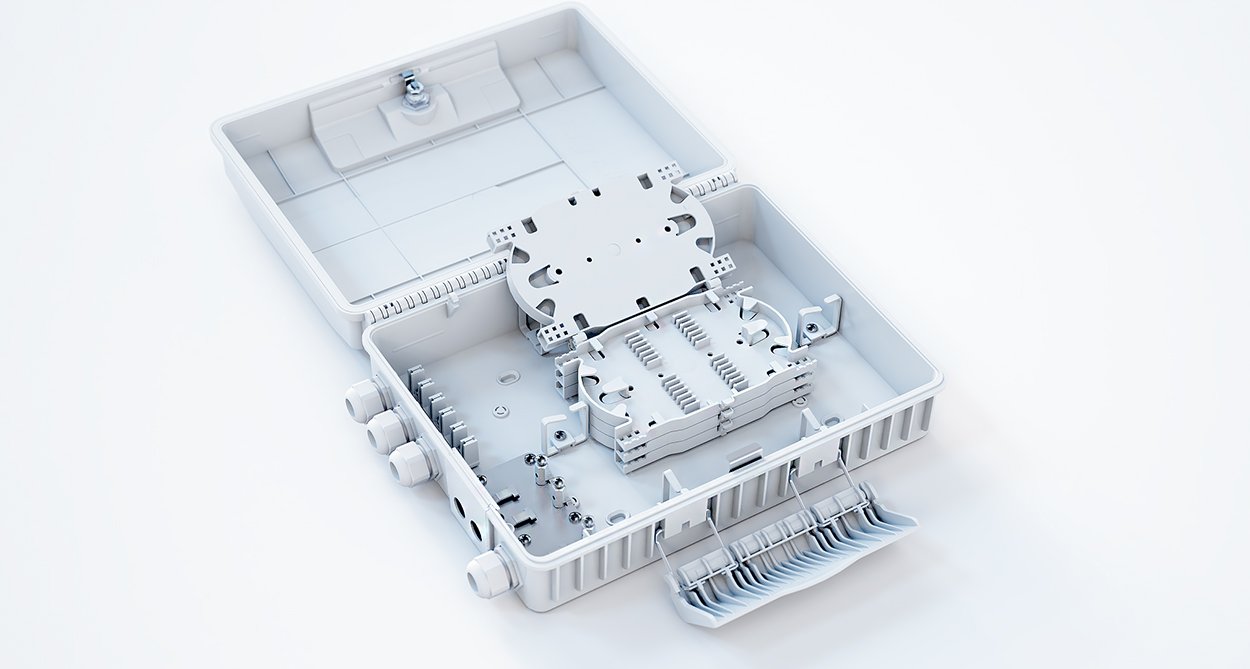

High-speed field installation and organized cable management are achieved through fiber routing channels and a modular splice tray system.
Application Areas
- FTTH field distribution points
- Telecom infrastructure projects
- Outdoor termination box applications
- Fiber distribution within campuses and residential estates
Precision guidance lines for incoming and outgoing fibers reduce the risk of bending and prevent signal loss.
Product Details
| Malzeme | PC-ABS |
| Renk | RAL7035 (Gri) |
| Alev Dayanımı | UL94 V0 |
| Koruma Sınıfı | IP65 |
| Genişlik (W) | 260 mm |
| Yükseklik (H) | 330 mm |
| Derinlik (D) | 109 mm |
| Montaj | Vida ve Dübel Seti |
| Giriş | 2 adet Ø15mm (Window-Cutting) 1 adet PG16 |
| Çıkış | 3 Adet PG16 |
| Füzyon Ek Kasedi | 4 Adet (4x12 Port) |
| Material | PC-ABS |
| Color | RAL7035 (Grey) |
| Fire Retardant | UL94 V0 |
| Protection Rating | IP65 |
| Width (W) | 260 mm |
| Height (H) | 330 mm |
| Depth (D) | 109 mm |
| Mounting | Screw and Wall Plug Set |
| Inlet | 2x Ø15mm (Window-Cutting) and 1x PG16 Gland |
| Outlet | 3x PG16 Glands |
| Fusion Splice Tray | 4 Units (4x12 Ports) |
Technical Documents
DF48 Datasheet
Click here to download the file.
DF48 Manual Guide
Click here to download the file.
